Hydraulic Testing

Lubricating Oil Testing

Fuel Testing

Pneumatic Testing

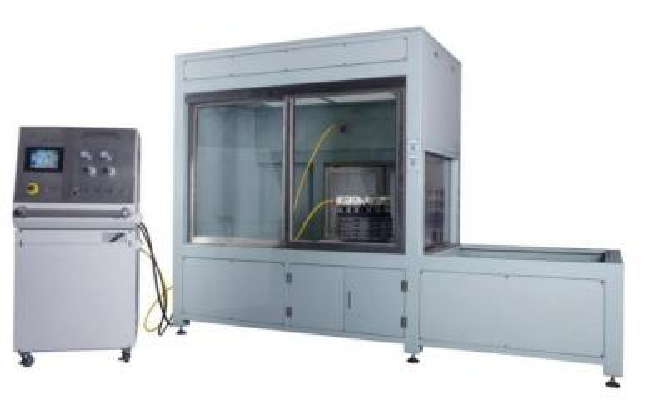

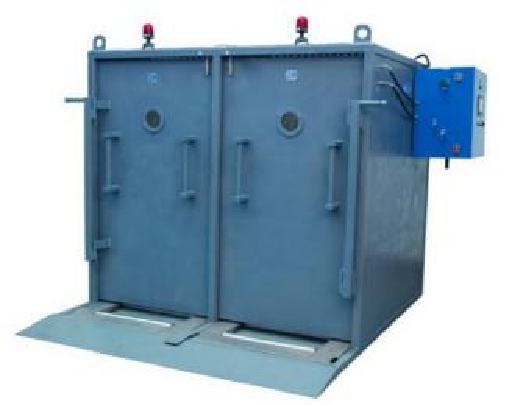

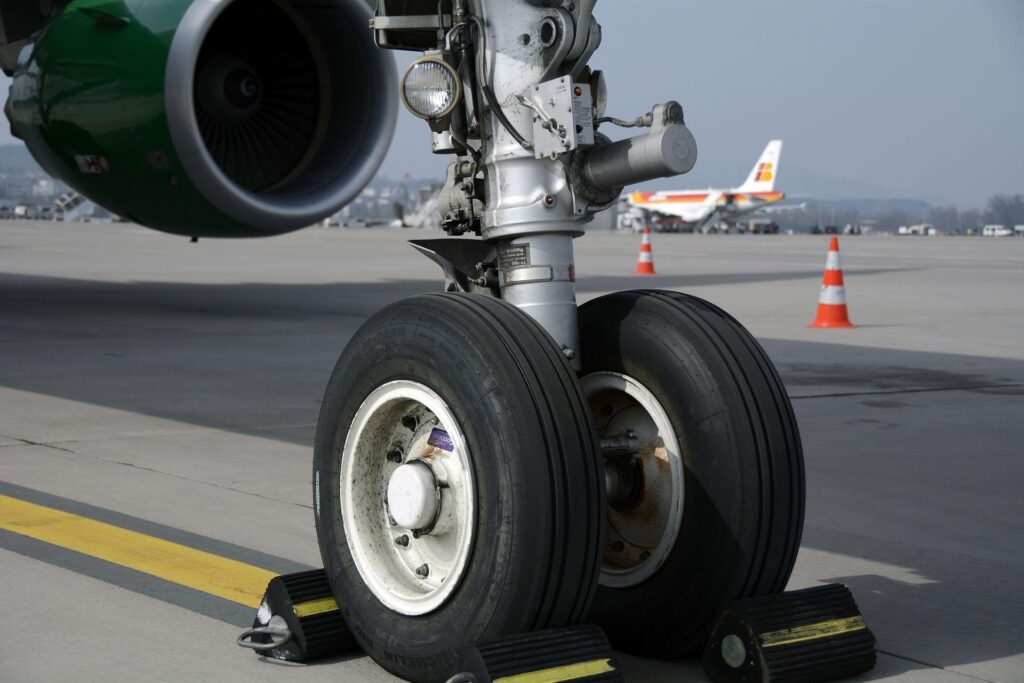

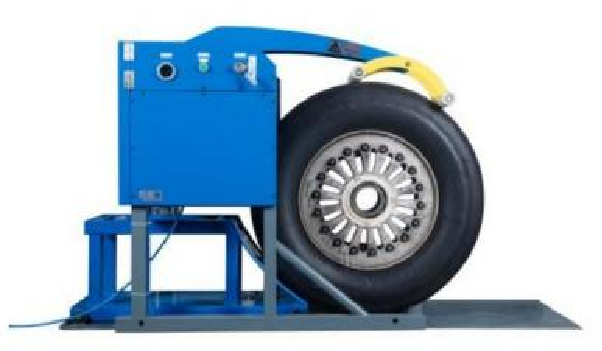

Wheel & Brake

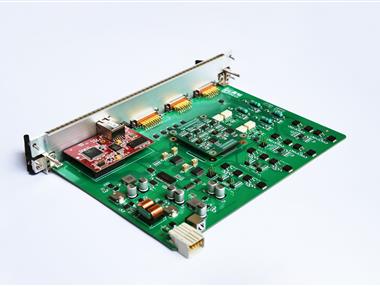

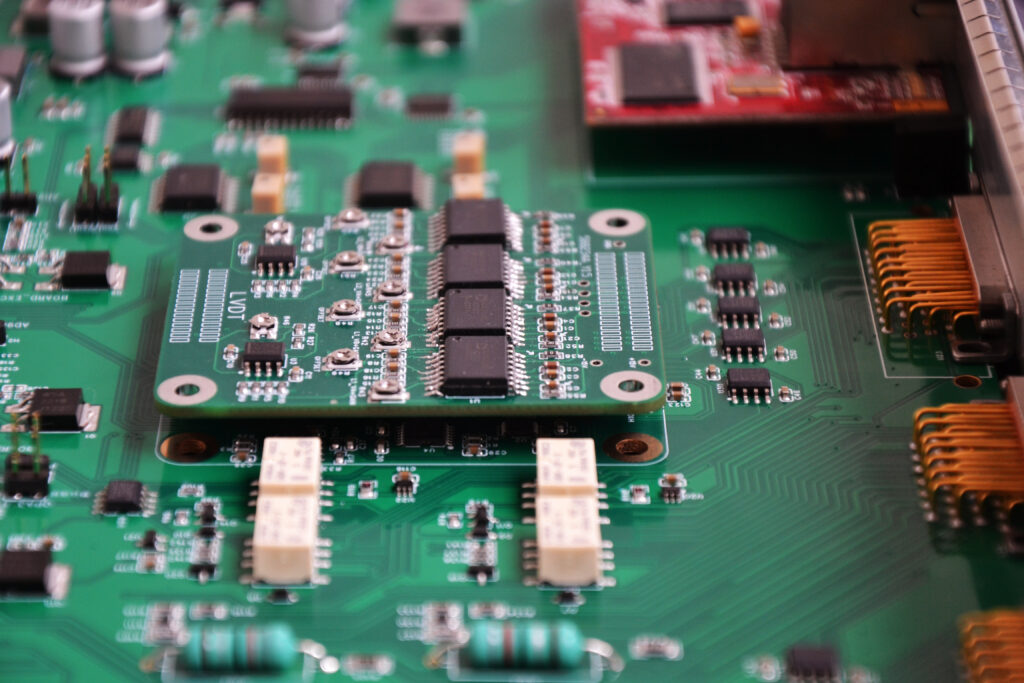

EEC

Applicable Scope

Hydraulic pump, hydraulic motor
Actuator, damper
PCU, PTU
Servo valve
Accumulator
Hydraulic valve, hydraulic fuse

Main Function

Non-rotating Component: Pressure test, flow test, performance test, sensor calibration test, sub-component test, etc.
Rotating Component: Speed test, torque test, maximum pressure test, rated flow test, return oil flow test, etc.
Servo valves: Zero offset current test, pressure gain test, flow gain test, dynamic response test, etc.

Non-Rotating Hydraulic Components Test Bench （Type:JM-H-02）

Profile Non-rotating hydraulic test stand is designed to perform post-overhaul of hydraulic cylinde…

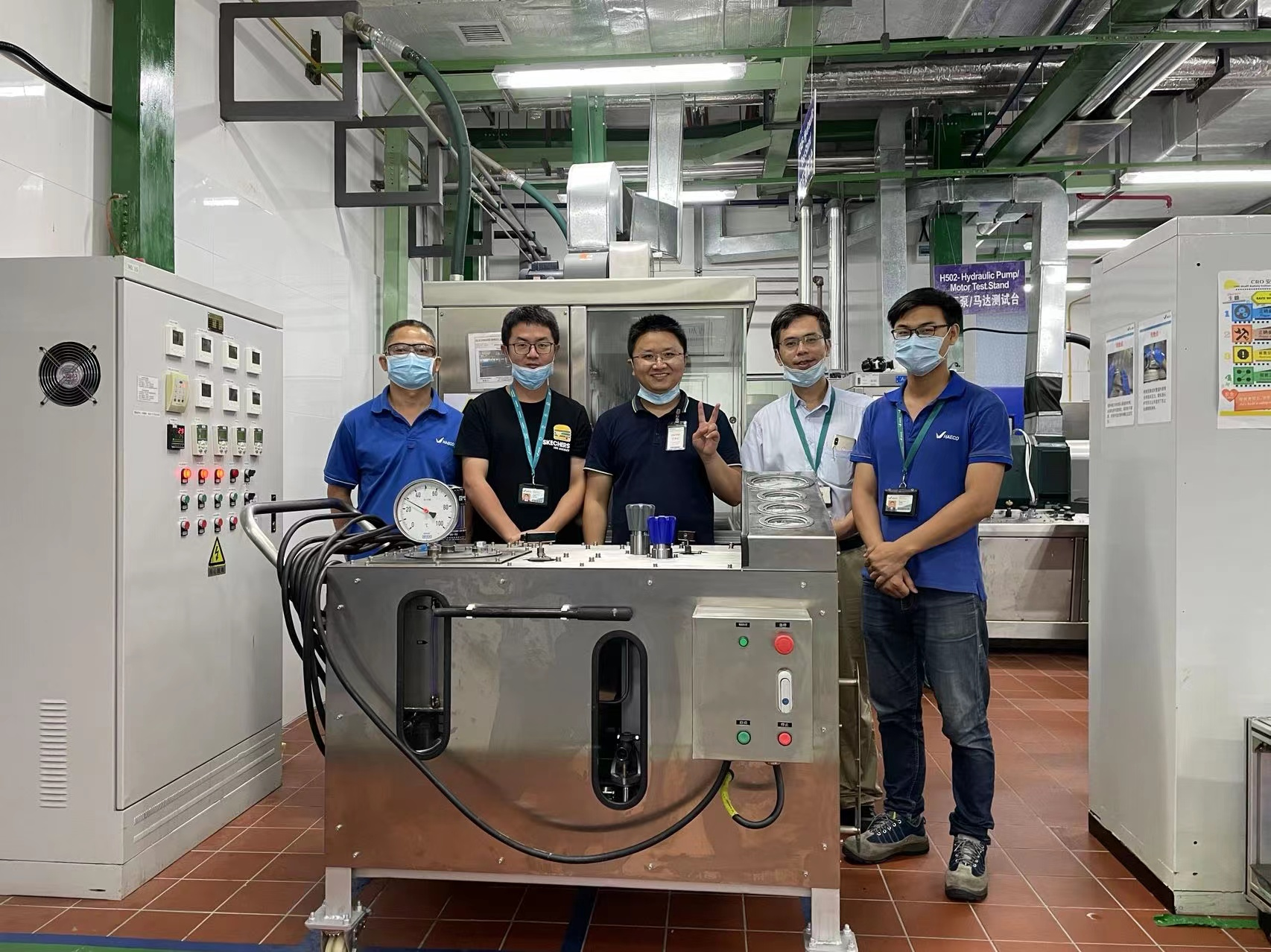

Oil Source Station （Type:JM-H-04）

Profile It is used for the pressure test of the landing gear actuator, with manual and electric pres…

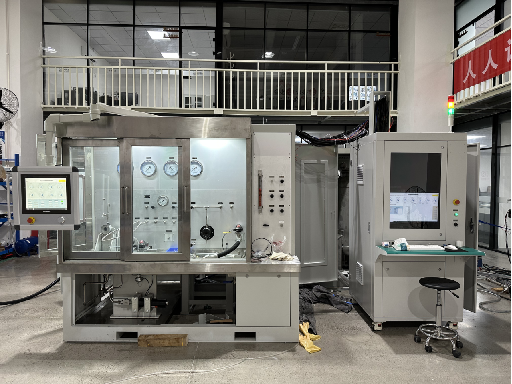

Hydraulic Pump / Motor Test Bench （Type:JM-H-03）

Profile The rotary hydraulic test section must meet the static and dynamic characteristic test requi…

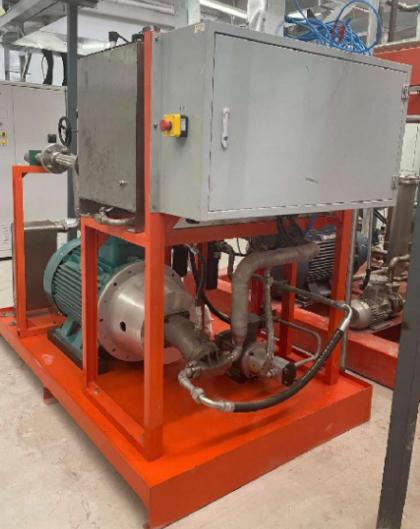

Hydraulic Power Unit （Type:JM-H-03）

Profile The Hydraulic Power Units are designed to supply hydraulic fluid under pressure to comp…

Applicable Scope

Lubricating oil heat exchanger
Lubricating oil pump

Main Function

Lubricating oil heat exchanger
Pressure drop test
Sealing test
Pressure resistance test
Pressure alternating test
Lubricating oil pump
Running-in operation test
Ground performance test
High-altitude performance test
Overflow valve test
Pressure cycling test
Life test

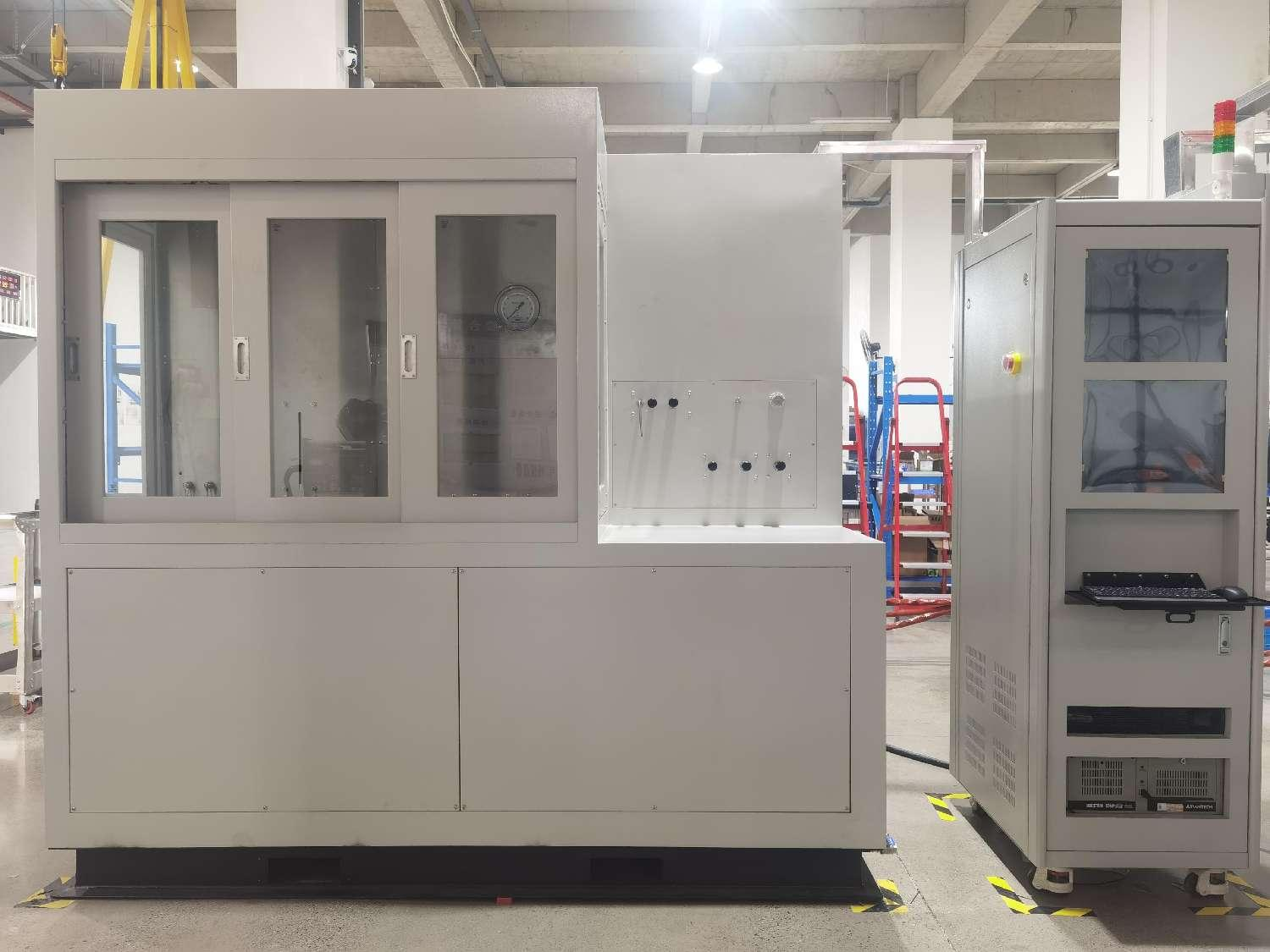

Lubricating Oil Pump Test Bench （Type: JM-L-01）

Introduction The oil pump test bench is mainly used for running-in operation, ground performance, hi…

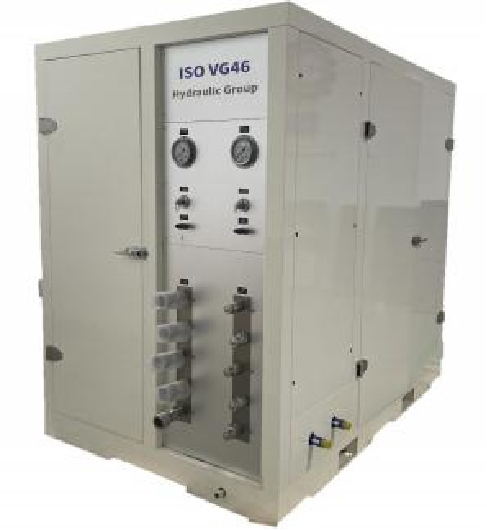

Compact Pump Source （Type: JM-L-03）

Introduction The ISO VG46 hydraulic group is used to provide pressurized ISO VG46 oil for kinds of h…

Applicable Scope

Main fuel pump
Hydraulic mechanical unit
FMU
Nozzle
Fuel booster pump
Jet pump

Main Function

Performance test
Pressure test
Flow test

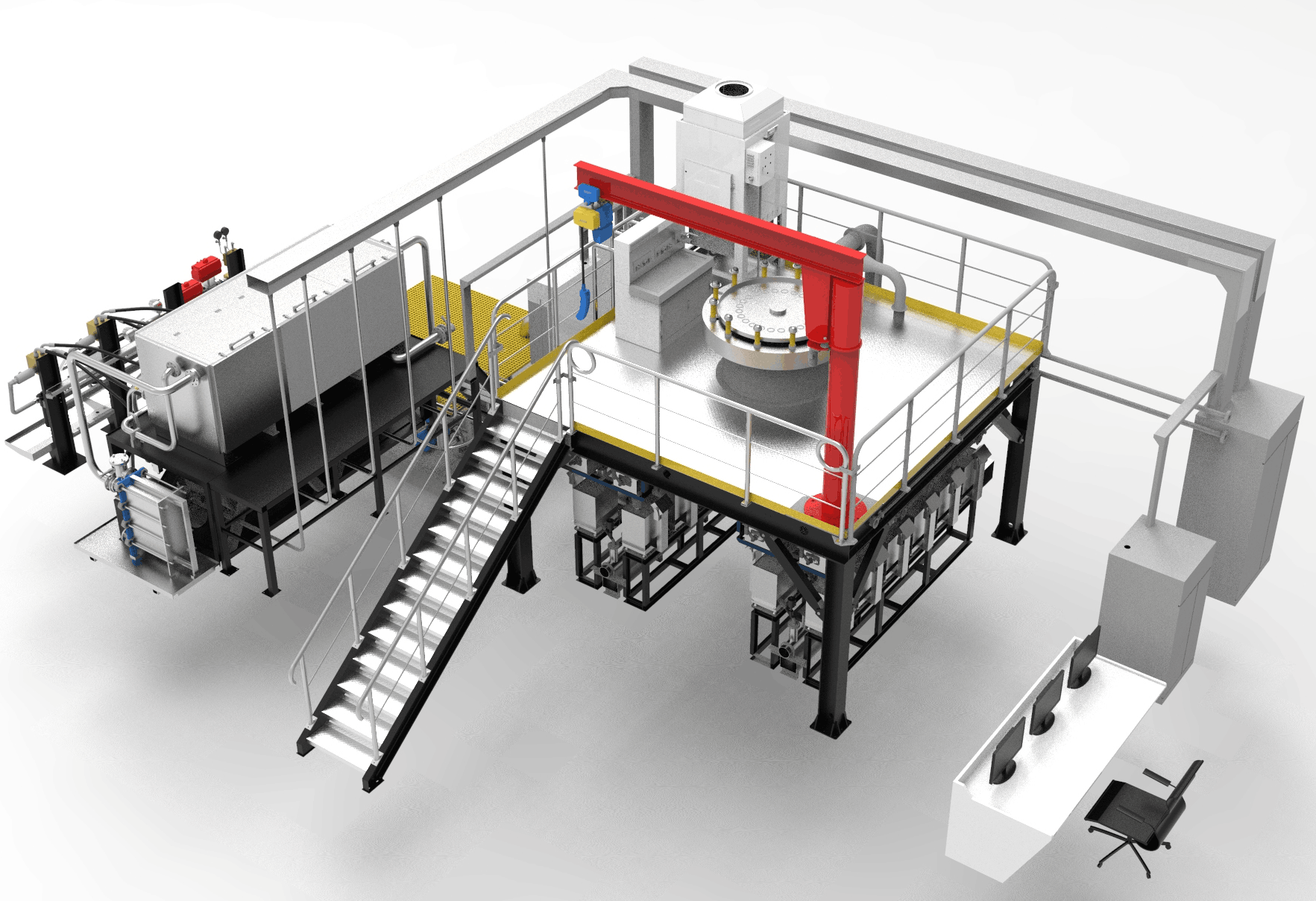

Fuel Manifold Test Bench （Type:JM-F-05）

Profile The fuel manifold test bench mainly obtains the flow rate and distribution uniformity of the…

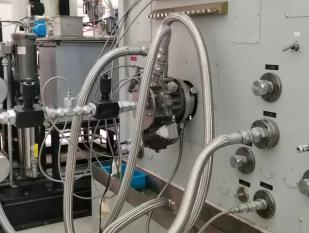

Pump Test Bench （Type: JM-F-02）

Profile The fuel pump test bench system is a multi-model fuel pump maintenance test bench, capable o…

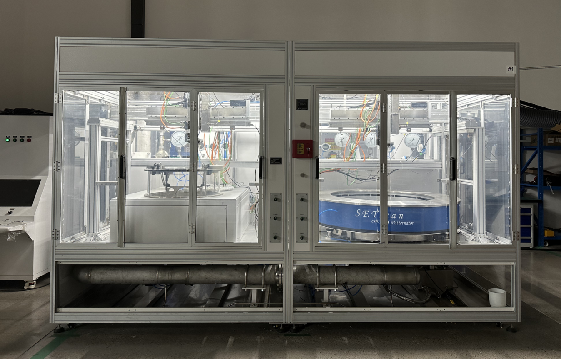

Nozzle Test Bench （Type:JM-F-03）

Profile The nozzle test bench is mainly used to test the performance of multi-type fuel nozzles unde…

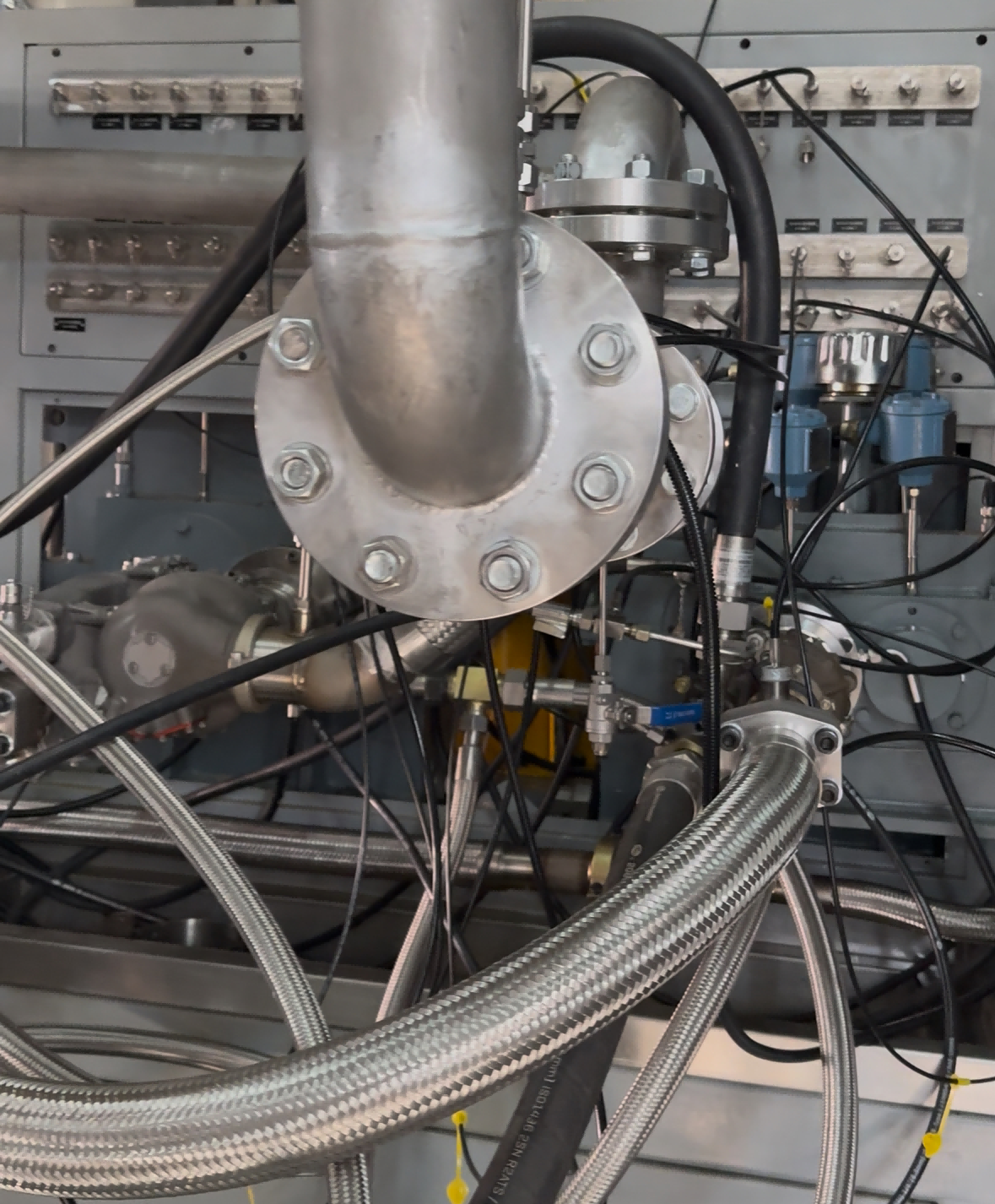

HMU/ FMU Test Bench （Type:JM-F-04）

Profile This test bench is designed for running, performance debugging, acceptance and delivery and …

Applicable Scope

Valves

Flow control valve, pressure regulation and shut-off valve, anti-ice valve, anti-surge valve, bleed valve, turbine clearance control valve, etc.

Rotating Parts

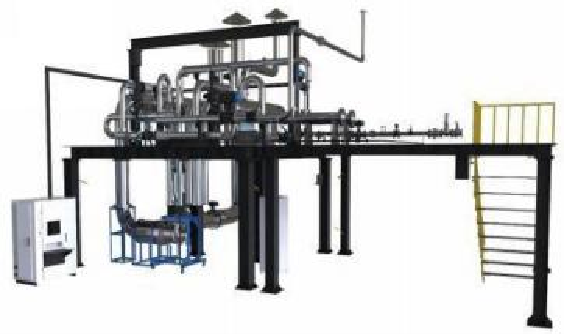

Air starter, air circulation machine, etc.

Heat Exchangers

Heat exchanger, pre-cooler, reheater, condenser/water separator, etc.

Others

Various pressure controllers, electromagnetic thermostats / thermostats, etc.

Main Function

Accurately control pressure, flow rate, and temperature.
Provide control air source, back pressure regulation system, load system, and pressure & flow measurement system.
Provide control and acquisition systems for solenoid valves, servo valves, position switches, displacement sensors and angle sensors.
