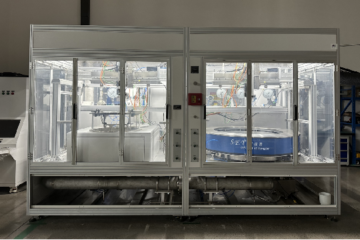

Fuel Manifold Test Bench

Profile

The fuel manifold test bench mainly obtains the flow rate and distribution uniformity of the fuel manifold by measuring the flow rate of each nozzle on the fuel manifold.

Structure

It consists of the main body of the equipment, the fuel oil supply system, the pressure regulation system, the fuel oil return system, the fuel cooling system, the fuel manifold flow distribution uniformity measurement system, the compressed air system, the exhaust device, the electrical control and testing system, etc.

Feature

• Integrated design, unchanged function, smaller size.
• Sophisticated and mature angle measuring device, uniformity measuring device and high-precision flow measurement system, complete all tests in one clamping, the perfect combination of efficiency and high precision.
• Reliable explosion-proof design and safety alarm design ensure the safety of nozzle testing.
• Oil mist recovery system and high-efficiency filtration system double fuel consumption and meet environmental protection requirements.
• The platform collects and recovers the fuel ejected through the nozzle and pumps the recovered fuel back into the fuel tank.
• The oil return system is equipped with an exhaust fan to achieve a micro-negative pressure environment to extract the oil-gas mixture. The oil-gas mixture is separated by an oil-gas separator or other equipment with similar functions, and is discharged into the atmosphere after meeting relevant standards.
• The number of measurement units is adjustable.
